Monitoring IB Counters with Prometheus and Grafana

Introduction

In my previous post, I showed that InfiniBand delivers 27–57× higher multi-node throughput than Ethernet for LLM fine-tuning on Azure H100 clusters. But having fast interconnect is only half the story — you also need to know when it’s degrading. A single faulty IB port can silently cripple a multi-node training run, and without monitoring, the symptom looks like “training is slow” rather than “port 3 on node 7 has 50,000 packet sequence errors.”

This post describes a complete monitoring pipeline for InfiniBand health on Azure Standard_ND96isr_H100_v5 VMSS clusters: what counters exist, where they come from, how to export them to Azure Managed Prometheus, and how to visualize them in Grafana. The entire setup deploys automatically as part of VMSS provisioning — no manual SSH required.

What Gets Monitored

Each H100 node has 8× Mellanox ConnectX-7 InfiniBand HCAs (mlx5_ib0 through mlx5_ib7), plus one Accelerated Networking interface (mlx5_an0). The monitoring pipeline collects three categories of metrics from every node:

1. IB port counters — basic traffic and error counters from the standard InfiniBand management layer:

2. IB hardware counters — low-level counters from the Mellanox mlx5_ib kernel driver, exposed at /sys/class/infiniband/mlx5_ib*/ports/*/hw_counters/. These are the most diagnostic counters for RDMA health — they reveal retransmissions, sequence errors, and QP-level failures that the basic port counters miss entirely.

3. System metrics — CPU utilization, memory usage, network I/O from the node exporter.

The IB Hardware Counters: A Deep Dive

The hardware counters are the most valuable and least documented part of IB monitoring. They come from the kernel’s mlx5_ib driver — specifically the RDMA verbs layer — and are available on any system with Mellanox OFED or the in-kernel rdma-core drivers. They are not specific to Azure’s HPC image or any particular cloud provider.

There are 22 counters per IB port. The table below describes each one, categorized by type, based on NVIDIA’s official documentation:

Error Counters

These should be zero on a healthy cluster. Any non-zero value warrants investigation.

Informative Counters

These are operational metrics — non-zero values are normal and expected during RDMA traffic.

Which Counters Matter Most for NCCL/FSDP

For distributed training workloads, the counters to watch are:

• local_ack_timeout_err and req_transport_retries_exceeded: These indicate a remote node or port is unreachable or severely degraded. Even a handful of transport retries can cause multi-second stalls in NCCL collectives.
• packet_seq_err and out_of_sequence: Sequence errors mean packets are being dropped or reordered in the switch fabric. This forces retransmissions and degrades effective bandwidth.
• out_of_buffer: If NCCL’s receive queues are exhausted, incoming RDMA writes stall. This can happen under extreme memory pressure or with misconfigured QP parameters.
• req_cqe_error / resp_cqe_error: Hardware-level completion errors. If these appear, the IB HCA or its firmware may need attention.

The informative counters (rx_read_requests, rx_write_requests, rx_atomic_requests) are useful for confirming that RDMA traffic is actually flowing during a training run. During an NCCL all-reduce, you should see rx_write_requests climbing steadily on all ports.

Architecture

The monitoring pipeline has four layers:

┌──────────────────────────────────────────────────────────┐
│                   Azure Managed Grafana                  │
│               (Dashboard with PromQL queries)            │
└────────────────────────┬─────────────────────────────────┘
                         │ PromQL queries
┌────────────────────────▼─────────────────────────────────┐
│              Azure Monitor Workspace (AMW)                │
│           (Managed Prometheus / remote_write)             │
└────────────────────────┬─────────────────────────────────┘
                         │ remote_write (HTTPS)
┌────────────────────────▼─────────────────────────────────┐
│              Prometheus (per-node container)              │
│           (Moneo's start_moneo_services.sh)              │
│                                                          │
│   Scrape jobs:                                           │
│     :8001 → net_exporter    (IB port counters)           │
│     :8002 → node_exporter   (CPU, memory, network)       │
│     :8003 → ib_hw_exporter  (IB hw_counters - custom)    │
└────────────────────────┬─────────────────────────────────┘
                         │ HTTP scrape
┌────────────────────────▼─────────────────────────────────┐
│                  Linux kernel (sysfs)                     │
│   /sys/class/infiniband/mlx5_ib*/ports/*/counters/*      │
│   /sys/class/infiniband/mlx5_ib*/ports/*/hw_counters/*   │
│   /proc/stat, /proc/meminfo, /sys/class/net/...          │
└──────────────────────────────────────────────────────────┘

Moneo: What It Provides (and What It Doesn’t)

Moneo is pre-installed on Azure’s HPC Ubuntu images at /opt/azurehpc/tools/Moneo/. When started via start_moneo_services.sh, it runs a Prometheus container that scrapes three local exporters and remote_writes to Azure Monitor:

• net_exporter (:8001): IB port counters — ib_port_rcv_data, ib_port_xmit_data, ib_port_rcv_errors, ib_port_physical_state, etc.
• node_exporter (:8002): System metrics — node_cpu_util, node_mem_util, node_mem_available, node_cpu_frequency, node_net_rx, node_net_tx.
• nvidia_exporter (:8000): GPU metrics via DCGM. (Note: this was broken in our testing due to a dcgm_fields module error — not critical for IB monitoring.)

What Moneo does not export is the IB hardware counters — the 22 counters from /sys/class/infiniband/mlx5_ib*/ports/*/hw_counters/. These are the most diagnostic counters for RDMA health, and their absence is a significant gap. To fill it, I wrote a custom exporter.

The Custom IB Hardware Counter Exporter

The ib_hw_exporter.py is a minimal Python HTTP server that reads all 22 hardware counters from sysfs and serves them in Prometheus exposition format on port 8003:

#!/usr/bin/env python3
"""Prometheus exporter for InfiniBand hw_counters.
Reads /sys/class/infiniband/mlx5_ib*/ports/*/hw_counters/*
and serves as Prometheus gauge metrics on port 8003.
"""
import glob, http.server, socket

PORT = 8003
HOSTNAME = socket.gethostname().lower()
HW_COUNTERS_GLOB = "/sys/class/infiniband/mlx5_ib*/ports/*/hw_counters/*"

def collect_metrics():
    lines = []
    seen = set()
    for path in sorted(glob.glob(HW_COUNTERS_GLOB)):
        parts = path.split("/")
        device, port_num, counter = parts[4], parts[6], parts[8]
        try:
            with open(path) as f:
                val = f.read().strip()
            float(val)
        except (IOError, ValueError):
            continue
        metric = f"ib_hw_{counter}"
        ib_port = f"{device}:{port_num}"
        if metric not in seen:
            lines.append(f"# HELP {metric} IB hw_counter {counter}")
            lines.append(f"# TYPE {metric} gauge")
            seen.add(metric)
        lines.append(f'{metric}{{instance="{HOSTNAME}",ib_port="{ib_port}"}} {val}')
    return "\n".join(lines) + "\n"

This runs as a host-level process (not containerized) and is automatically added to Prometheus’s scrape configuration as the custom_exporter job. The label format — instance (hostname) and ib_port (e.g., mlx5_ib0:1) — matches Moneo’s existing exporters, so all metrics can share the same Grafana template variables.

One important detail: we filter mlx5_an0 (the Accelerated Networking interface for Ethernet) out of the ib_port dropdown in Grafana using ib_port=~"mlx5_ib.*". This keeps the dashboard focused on the 8 real InfiniBand HCAs.

Deployment

The entire stack — VMSS, monitoring, and the custom exporter — deploys from a single bash deploy.sh command. The key steps:

1. Provision the Monitoring Backend

prometheus_grafana.sh creates three Azure resources:

• User-Assigned Managed Identity (MI) — authenticates Prometheus to Azure Monitor
• Azure Monitor Workspace (AMW) — the managed Prometheus backend
• Azure Managed Grafana — for dashboards

It then assigns the Monitoring Metrics Publisher role to the MI on three scopes:

# The AMW itself
az role assignment create --role "Monitoring Metrics Publisher" --scope $AMW_ID ...

# The Data Collection Rule (DCR) in the managed resource group
az role assignment create --role "Monitoring Metrics Publisher" --scope $DCR_ID ...

# The Data Collection Endpoint (DCE) in the managed resource group
az role assignment create --role "Monitoring Metrics Publisher" --scope $DCE_ID ...

The RBAC gotcha: Assigning the role on the AMW alone is not sufficient. Prometheus’s remote_write targets the DCR/DCE in a system-managed resource group (MA_{amw_name}_{location}_managed), and without the role on those resources, every write returns HTTP 403 Forbidden. The AMW documentation doesn’t mention this. The managed resource group and its DCR take 30–60 seconds to appear after AMW creation, so the script includes a polling loop.

2. Configure Moneo via cloud-init

The VMSS cloud-init template configures Moneo’s moneo_config.json with the MI client ID and the Prometheus remote_write endpoint, then starts the Moneo services:

# Substitute placeholders in moneo_config.json
sed -i "s|<identity client id>|${client_ID}|g" /opt/azurehpc/tools/Moneo/moneo_config.json
sed -i "s|<metrics ingestion endpoint>|${endpoint}|g" /opt/azurehpc/tools/Moneo/moneo_config.json

# Start Prometheus + all exporters
/opt/azurehpc/tools/Moneo/linux_service/start_moneo_services.sh

3. Deploy the Custom Exporter

After the VMSS is up, deploy.sh SCPs ib_hw_exporter.py to the head node, then distributes and starts it on every node via a helper script:

# Head node: SCP the exporter
scp ib_hw_exporter.py head_node:/home/azureuser/

# start_exporters.sh runs on the head node, loops over hostfile
start_exporter() {
  local node=$1
  scp -o StrictHostKeyChecking=no /home/azureuser/ib_hw_exporter.py ${node}:/opt/ib_hw_exporter.py
  ssh -o StrictHostKeyChecking=no ${node} '
    pkill -f ib_hw_exporter.py 2>/dev/null || true; sleep 1
    setsid python3 /opt/ib_hw_exporter.py > /var/log/ib_hw_exporter.log 2>&1 &
  '
}
while read -r node; do start_exporter "$node"; done < hostfile

Why setsid instead of nohup? When backgrounding a process over SSH (ssh host 'nohup cmd &'), the process may still be killed when the SSH session exits — nohup only ignores SIGHUP but doesn’t detach from the session leader. setsid creates a new session, fully detaching the process. Also, sudo is unnecessary since the sysfs hw_counters are world-readable.

Prometheus on each node already has a custom_exporter job configured in its scrape config, targeting localhost:8003. Once the exporter starts, metrics begin flowing within one scrape interval (15 seconds).

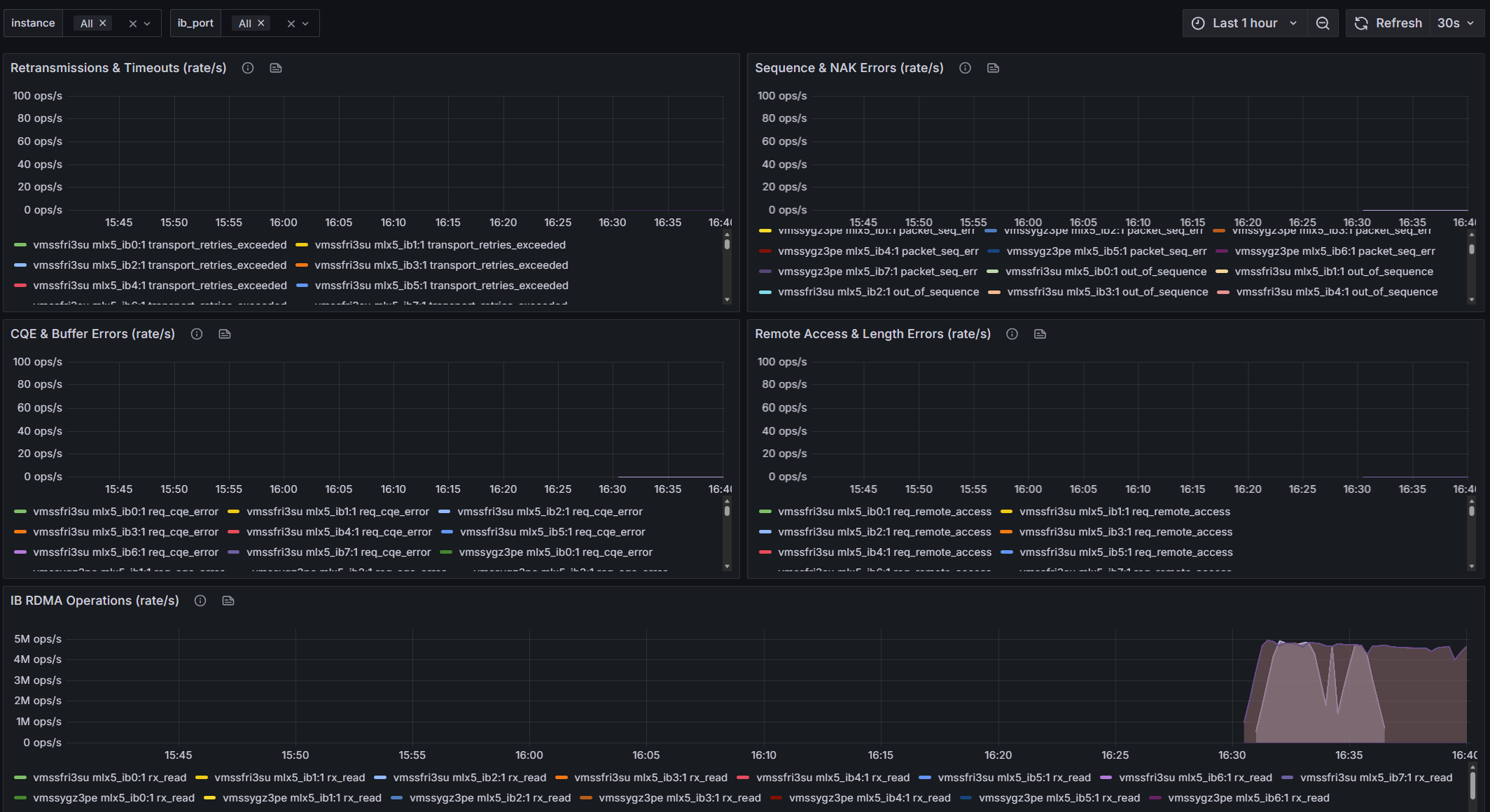

The Grafana Dashboard

The pre-imported dashboard has 17 panels organized in five sections:

IB Port Health — Overview table of non-zero port errors (empty = healthy), RX/TX data rates, RX/TX error rates, and port physical state indicators.

IB Hardware Counters — Overview table of non-zero hw_counters (the most important panel — if it has rows, something is wrong), retransmission and timeout rates, sequence and NAK error rates, CQE and buffer error rates, remote access error rates, and RDMA operation rates.

System Metrics — CPU utilization, memory utilization, memory available, CPU frequency, and Ethernet network RX/TX rates.

Template variables allow filtering by instance (hostname) and ib_port (individual HCA). The ib_port variable filters out mlx5_an0 so only the 8 IB ports appear.

Interpreting the Dashboard

Healthy Cluster

On a healthy cluster, you should see:

• IB Port Errors overview table: Empty (no rows). All port error counters are zero.
• IB HW Counters overview table: Empty. All error counters are zero.
• IB RX/TX data rates: Flat near zero during idle, spiking uniformly across all ports during training.
• IB Port Physical State: All ports showing “LinkUp” (value 5).
• RDMA Operations: rx_write_requests and rx_read_requests climbing during NCCL collectives.

Warning Signs

The Source of IB Counters

A common question: do these counters require the Azure HPC image? The answer is no.

The IB port counters (/sys/class/infiniband/*/ports/*/counters/) come from the InfiniBand management layer, which is part of the standard kernel RDMA subsystem. Any machine with rdma-core and a Mellanox HCA will have them.

The IB hardware counters (/sys/class/infiniband/*/ports/*/hw_counters/) come from the mlx5_ib kernel driver — the Mellanox-specific RDMA driver. They require either Mellanox OFED or the in-kernel mlx5 drivers (included in modern Linux kernels). These counters are not cloud-specific or image-specific — they work the same on bare-metal, AWS, GCP, or Azure. The only requirement is a Mellanox ConnectX HCA and the mlx5_ib driver.

What is specific to Azure’s HPC image is Moneo — the pre-installed monitoring framework that configures the Prometheus exporters and container. If you’re using a custom image, you’d need to install Moneo or set up equivalent exporters yourself.
